Elitech Refrigerant Leak Detector CLD-100 Freon Leak Detector Car HVAC Halogen Refrigerant Leak Detector CFCs HCFCs HFCs

Elitech CLD-100 Halogen Leak Detector is used to detect leaks in HVAC systems and storage/ recovery containers. An upgraded version of WJL-6000. Traditional corona sensor with an updated analogue circuit, fast triggers on R11, R22, R134A, R404a, R410A and all halogenated refrigerants including HFCs, CFCs, HCFCs and blends.

• • 6s preheating time, instantaneous response; 6 adjustable sensitivity, sensitivity of 0.21oz/yr.
  • A flexible probe around 8.26 inches allows detections in difficult and hard-to-reach areas.
  • Direct status indication with audible & visual leakage alarm indicators and dual colour battery indicators. Battery by 4 AAA batteries (Not included)



  User Guide:

  Leaking areas are usually covered with contaminants such as compressor oil or dirt, so be careful not to let the sensor tip come in contact with these contaminants.

  Keep the sensor tip away from any moisture or other solvents to avoid false alarm.

• Specifications

  Sensor lifetime: 24 hours

  Sensitivity range: 7 levels

  Maximum sensitivity: 6g/yr

  Response time: < 3s

  Warm-up time: 6s

  Reset time: 2s

  Refrigerants: CFCs / HCFCs / HFCs /HCs / HFOs

  Power supply: 4 AAA alkaline battery(not included)

  Operating temperature: 0℃-52℃(30°F to 125°F)

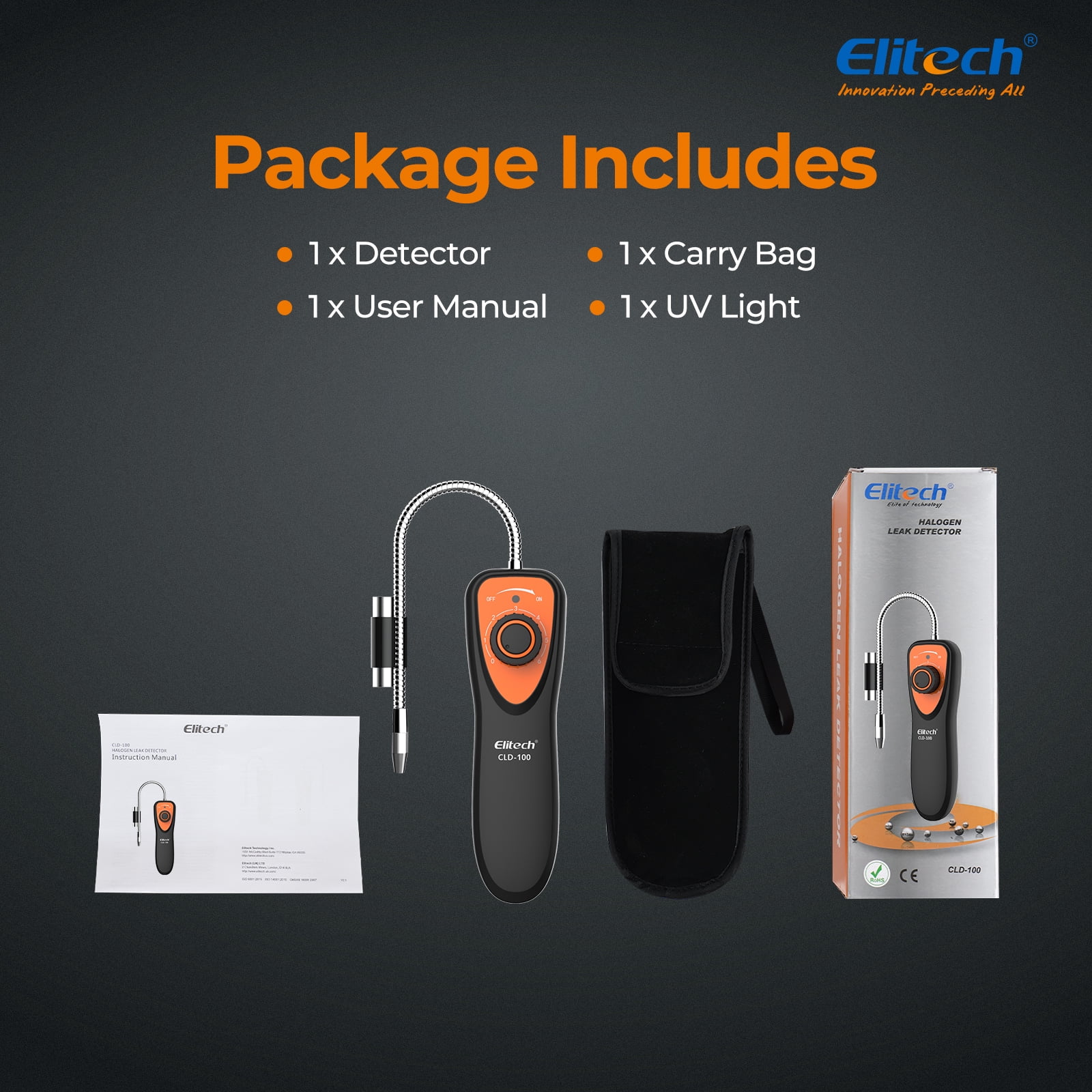

  Package list:

  1 x Detector, 1 x Carry Bag,

  1 x User Manual
