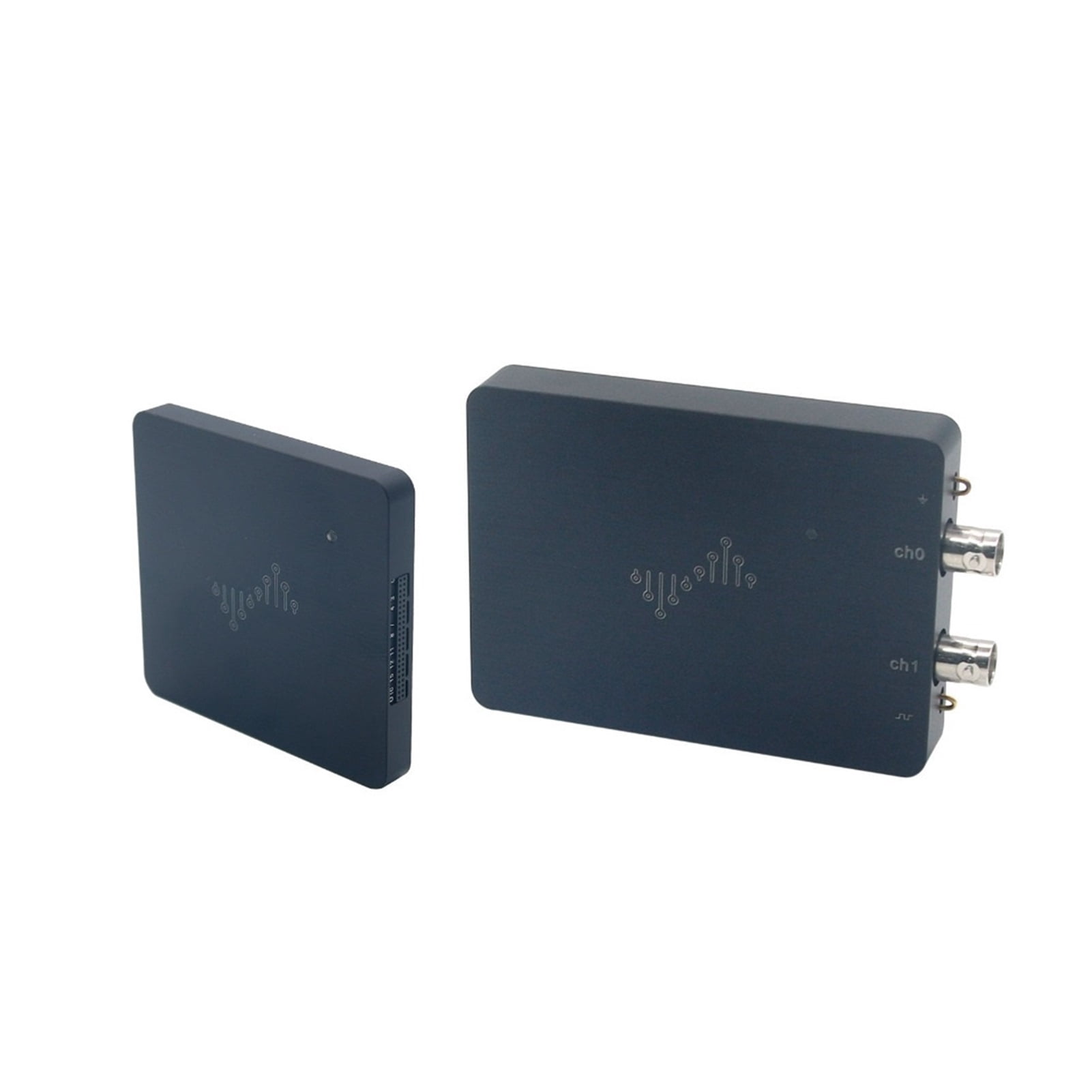

Kit Logic Analyzer Dual Channel 16G Depth 16CH 100M Sampling Rate+ Powerful Oscilloscope

<p>This is a logic analyzer product with high cost performance. </p><p>Channels of digital signal could be sampled at the same time, and then they could be converted to digital waveform and displayed on the PC screen.</p><p>The signal could be analyzed with many standard protocols, to get more straightforward communication data.</p><p>It helps a lot in testing and analyzing digital system, developing and debugging several communication programs, or monitoring and recording some digital signals for a long time.</p><p>Excellent industrial design, which is not only beautiful and tasteful but also greatly enhanced the hardness of aluminum alloy surface, and has good heat resistance and strong wearability</p>

• Kit Logic Analyzer Dual Channel + Powerful Oscilloscope
• Description:
• - The project aim at creating an Open-Source, Low-cost & Extensible electronic instrument for makers and electronic enthusiasts is a powerful logic analyze and oscilloscope tool and you no need to buy expansive any more.
• - Is a USB - -based logic analyzer.Based - 6 FPGA + SDRAM product architecture, can provide up to 400 MHZ real-time sampling, the status of30 MHZ sampling,sampling depth of 16 M * 16 channel.
• Specifications:
• - Max Samplerate: 400MHz @ 4 Channels;200MHz @ 8 Channels;100MHz @ 16 Channels
• - Max Sample Depth:1G(stream mode)/16M(buffer mode)
• - Adjustable Threshold:0 ~ 5V (Continuous)
• - Advanced Trigger:16 stages
• - Protected Voltage: ±30 V (DC+AC peak)
• - Input Characteristics: 250K // ~7 pF
• - Input Channel Analog Bandwidth:50MHz
• - Max State Clock Input:50MHz
• Specifications:
• - Open source
• - Unibody aluminum shielded case
• - Auto zero skew adjustment
• - Upgradable Hardware
• - Advanced digital trigger
• - Deep sample depth
• - USB interface, USB powered
• - Two channels
• - Signal Generator
• User Guide:Click here
• Software Download:Click here
• Package List:
• - 1 x Kit Logic Analyzer Dual Channel
• - 1 x Powerful Oscilloscope
